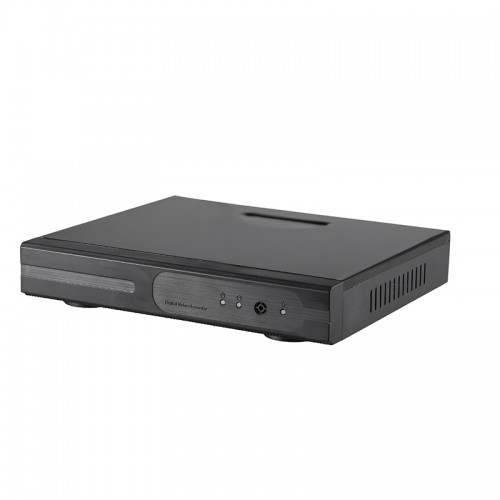

5 in 1 DVR Specification

Model

JW-5204-H

Channel Mode

DVR Mode

Support, Max 4ch TVI@3.0MP/1080P/960P/720P; AHD@3.0MP/1080P/960P/720P; CVI@1080P/720P;analog video real time input

Mixed Mode

Support, Max 4ch，Arbitrary proportion analog channels and IPCAM channel

NVR Mode

Support, Max 4ch IPCAM video real time input

Digital Channel
(IPC)

IP video input

Max 4ch 1080P，RJ45 interface

buit-in switch

NO

Protocol

ONVIF,N1

IPC Remote Setting

Time synchronization setting/ encoding setting
color adjust/ Motion detection

Analog Channel

video input format

TVI 2.0（720P@25/30/50/60fps，1080P@25/30fps, 3.0MP/18FPS），AHD (720P@25/30fps，1080P@25/30fps），CVI(720P@25/30fps，1080P@25/30fps）, CVBS（960H@PAL/NTSC）

video encoding resolution

3.0MP 1080P@12fps
1080P-H(960x1080)/720P/960H/D1@25fps;

video encoding rate

512 Kbps -- 4Mbps

UTC

support 4ch

Audio input

support 4ch

Audio  encoding

G.711

Video output

HDMI output

1 CH ，HDMI  Interface；Max Resolution：1920x1080/60Hz

CVBS output

Can support custom

VGA  output

1 CH ，VGA  Interface；Max Resolution：1920x1080/60Hz

Audio output

Audio output

RCA Audio output *1, HDMI Audio output

Playback

Stream type

AV stream/video stream

Video Compression

H.264

audio Compression

G.711

Recording

DVR mode：4 CH 720P/Half-1080P/1080P/3.0MP Recording
Mixed mode or NVR mode：4 CH 720P/Half-1080P/1080P/3.0MP Recording

Playback

４ CH 1080P Playback, 2 CH 3.0MP Playback

Double stream

Support

Web access

Support

PC client

Support

Mobile phone client

Support

Hard disk drive

Storage Type

1 *  SATA  Interface

Storage Capacity

6TB In Max

Backup

USB Backup & Internet Backup
