Specifications

Model Parameters

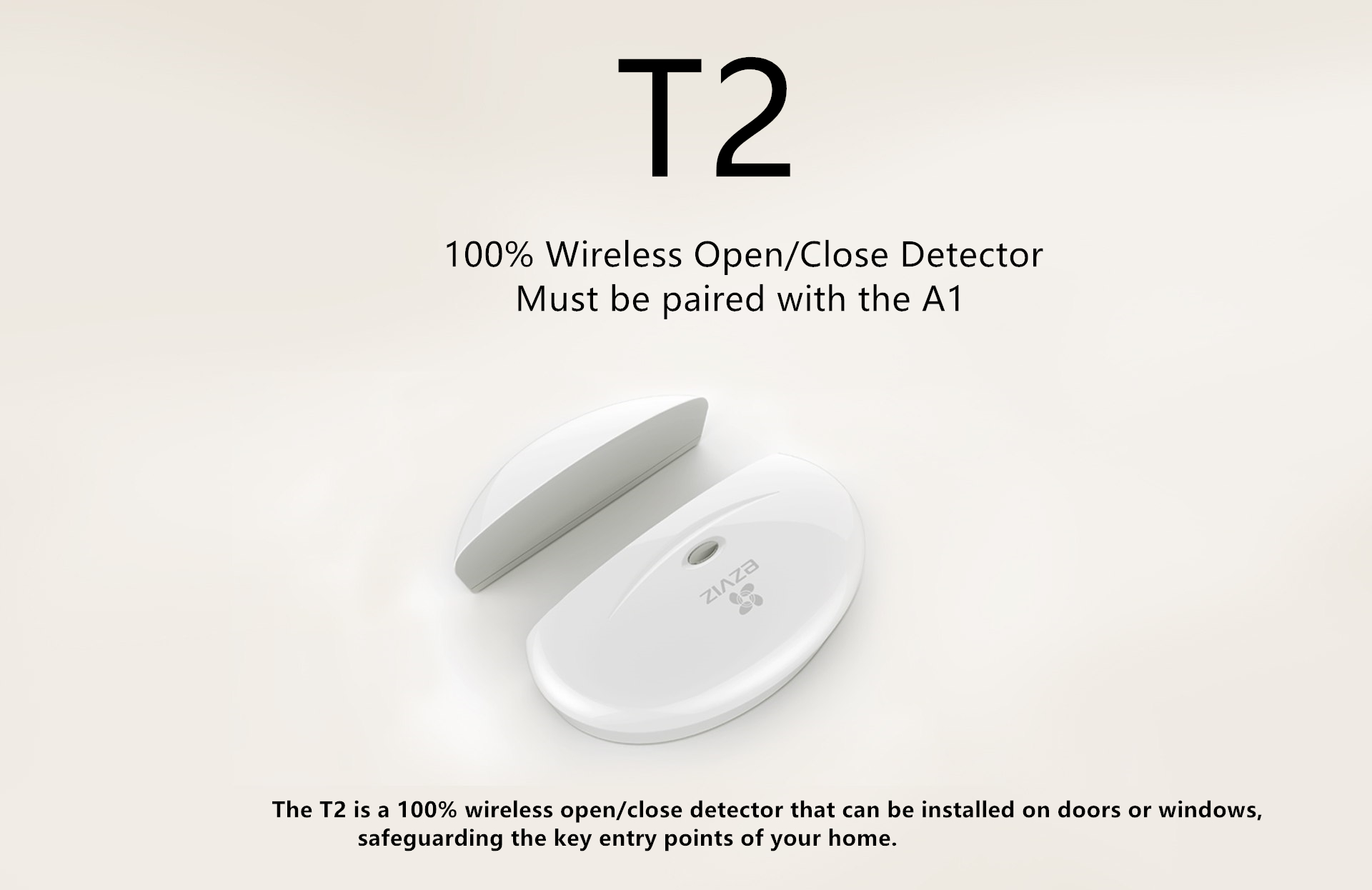

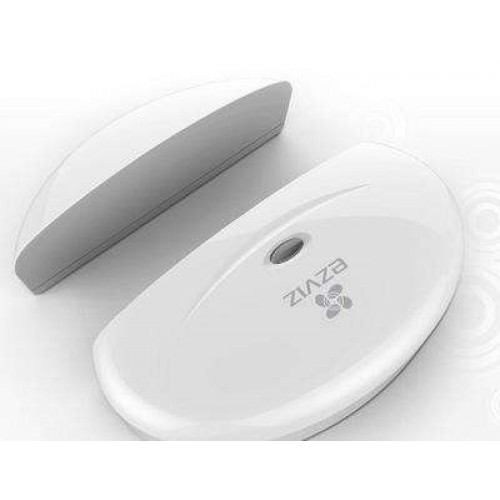

Model CS-T2-A

Technical Features
Working Frequency According to regulations: EU version 868MHz / Asia verison 433MHz / US version 915MHz
Trigger Distance 30mm±5mm
Restoration Distance 25mm±5mm

General
Operating Conditions -10ºC ~ 55ºC, Humidity 10% - 90%
Battery Type CR2450

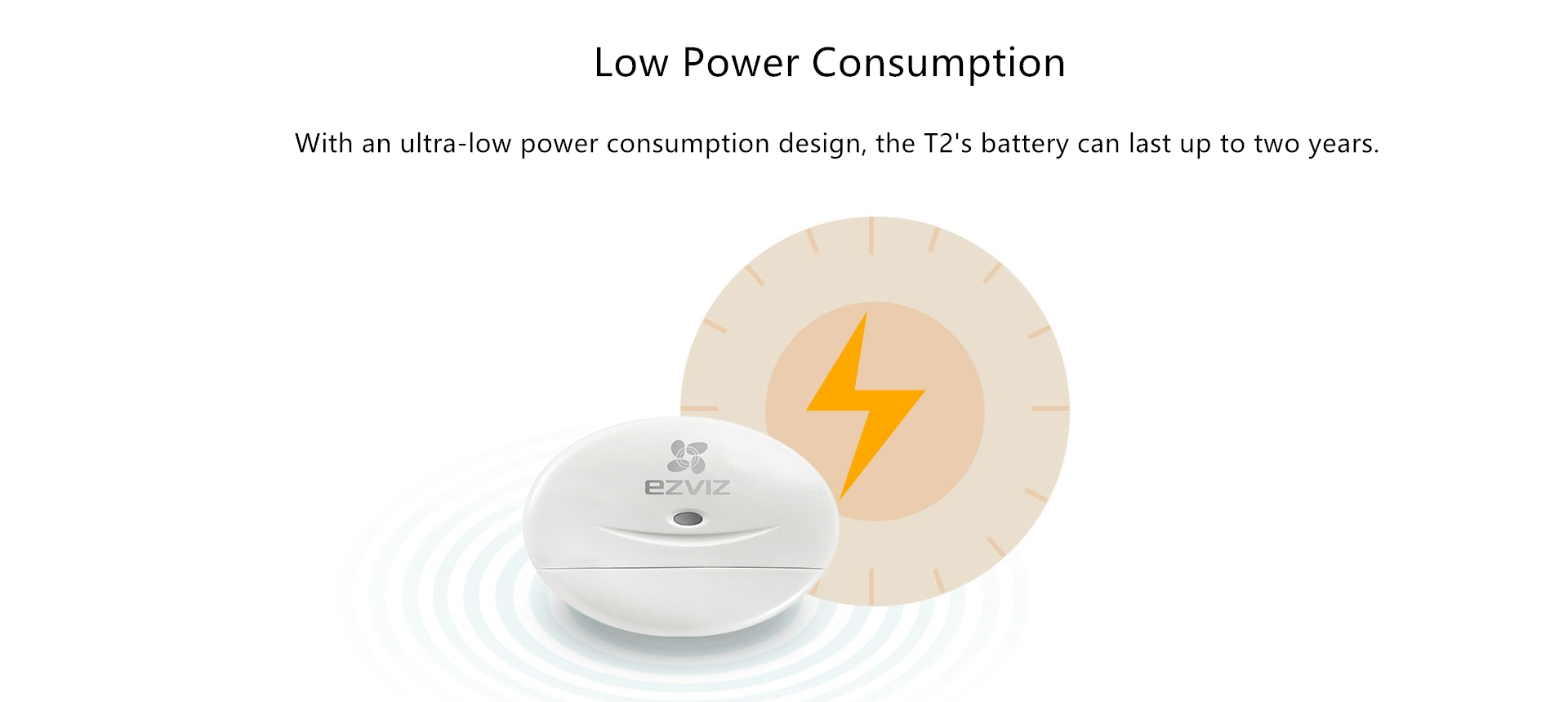

Battery Life 2 Years
Working Voltage 3V
Working Current Static≤20μA；Maximum≤40mA
Transmit Power ≤10dBm
Product Dimensions 71.9mm × 50mm × 18.5mm
Packging Dimensions 103mm x 86mm x 26mm
Weight 30g
