EZVIZ A1 Internet Alarm Hub

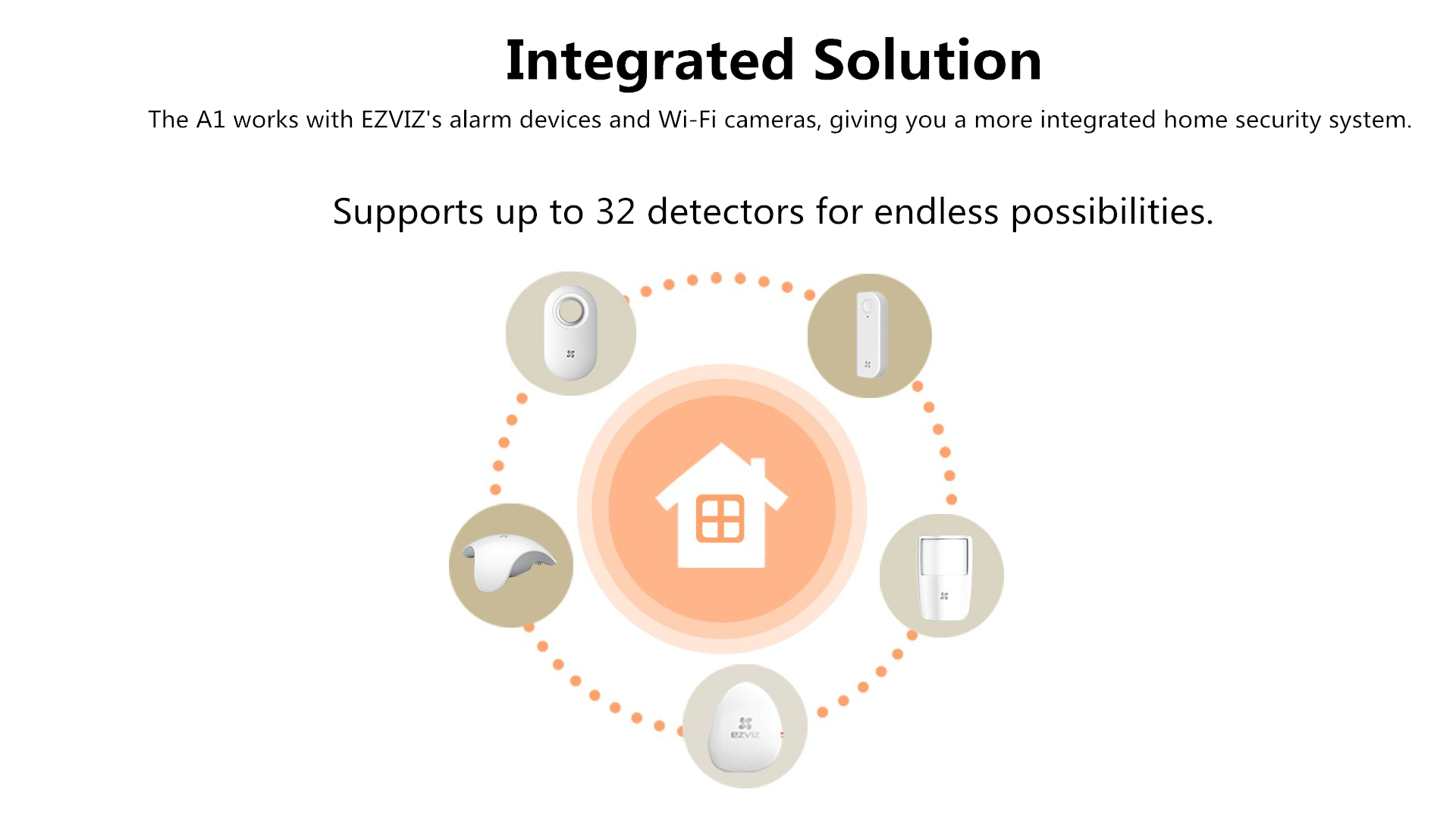

The EZVIZ Wi-Fi Smart Home Alarm Hub (A1) provides a full wireless security solution by communicating with all other EZVIZ Alarm devices, and by sending motion detection alerts to your smartphone via the EZVIZ App. Enhance your security system further by linking up to 32 devices to the Hub. Also included in the EZVIZ Remote Control (K2), allowing you to Disarm and alarm your system manually from your home.
View and manage your system via the EZVIZ App, allowing you to select modes, set sensor location names and link your EZVIZ cameras for extra security coverage and support. With great add-on sensors such as the T1- PIR Detector, T2-Open-Close Detector and many more, the EZVIZ alarm system offers a great security solution for your home.
(Please note: All additional EZVIZ sensor devices require the A1 to function)


Model Parameters

Model CS-A1-32W

Wireless Detector

Maximum 32 (optional)

Distance Between Detector and A1 < 100m (Open Distance)

Detector Type Wireless Open-close Detector / Wireless Pet Immune PIR Detector / Wireless Siren Remote Control etc.

Carrier Frequency According to regulations: Europe version 868MHz / Asia verison 433MHz / US version 915MHz

Transmission Power 10dBm

Network Features

Wi-Fi Supports Wi-Fi configuration via the EZVIZ app

Minimum Network Requirements 1M

External Interface

Micro USB Port 1

Voice Prompt

Voice Prompt Provides voice prompts and real-time voice alerts


Operating Conditions -10oC ~ 55oC, Humidity 95% or less (non-condensing)

Power Voltage DC 5V

Power Consumption ≤3W

Appearance Sleek Cobblestone Model

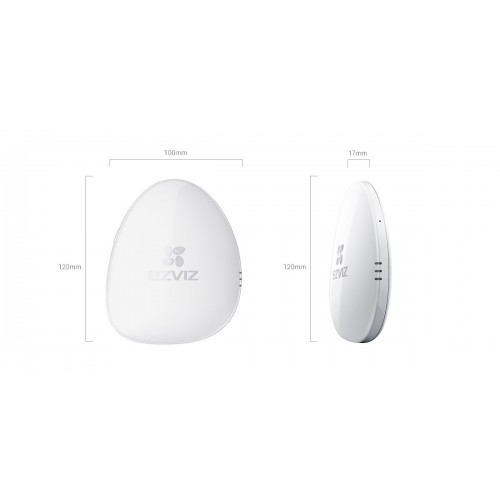

Product Dimensions 120mm × 100mm × 17mm

Packging Dimensions 203.5mm x 147.5mm x 59mm

Weight 136 g

Write a review

Note: HTML is not translated!
    Bad           Good

EZVIZ A1 Internet Alarm Hub

  • Brands EZVIZ
  • Product Code: EZVIZ A1 Internet Alarm Hub
  • Availability: 30
  • ¥860.00
