Specifications


Model Parameters
Model CS-CV246-B0-3B2WFR


Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens 4mm@ F2.2, Diagonal angle: 90°

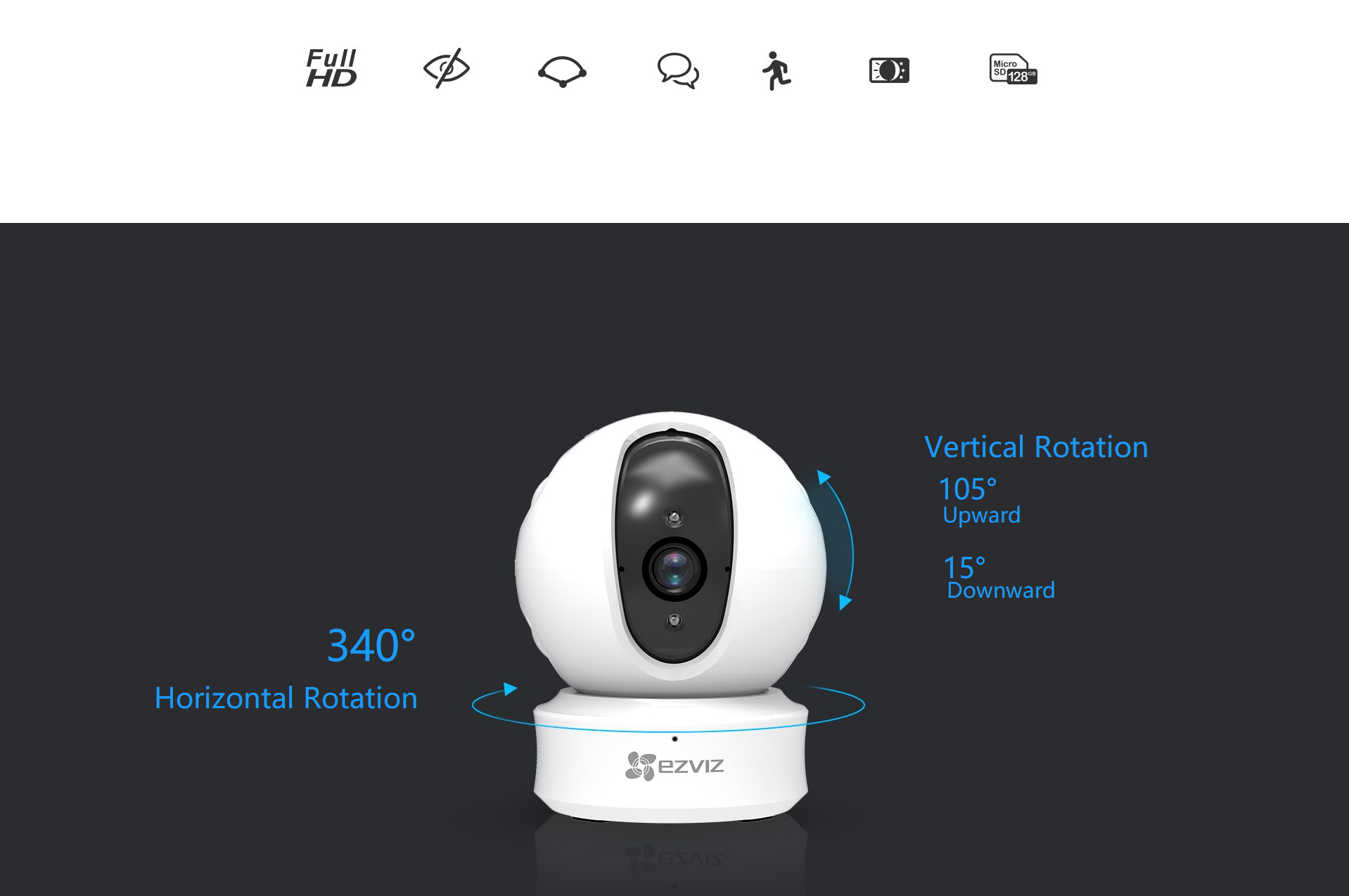

PT Angle Pan: 340°, Tilt: 120°
Lens Mount M12
Day & Night IR-cut filter with auto-switching
DNR 3D DNR
WDR Digital WDR


Compression
Video Compression H.264
H.264 Type Main profile
Video Bit Rate HD, Balanced and Smooth bit rate
Max. Resolution 1920×1080
Image setting Brightness, contrast, saturation, etc. (configurable via EZVIZ Studio)
BLC Support


Network
Storage Support Micro SD card (Max. 128G)
Smart Alarm Motion detection
Wi-Fi Pairing SmartConfig (Wi-Fi One-Key Configuration)/AP paring
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
General Features Anti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark
Minimum Network Requirements 2M


Wi-Fi
Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20MHz
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 135Mbps


General
Operating Conditions -30°C ~ 60°C, Humidity 95% or less (non-condensing)
Power Supply DC 5V±10%
Power Consumption Max. 7W
IR Range Max. 10 meters
Product Dimensions 87.7mm x 87.7mm x 112.7mm
Packaging Dimensions 106mm x 106mm x 190mm
Weight 256g



Write a review

Note: HTML is not translated!
    Bad           Good

EZVIZ C6C 1080P

  • Brands EZVIZ
  • Product Code: EZVIZ C6C 1080P
  • Availability: 100
  • ¥618.00
