| Model | Eg001pb | Eg001Li |
| Rated power | 500VA/300W | |
| AC Output Voltage(Battery Mode) | 220V ± 15% or 110V ± 5% | |
| AC Input Voltage Range | 165~275Vac ± 4% or 80〜140Vac ± 4% | |
| Solar Charging | 15V 20W—30W | |
| AC Frequency | Follow Utility (Line Mode), 50Hz/60Hz ± 0. 5Hz (Battery Mode) | |
| Frequency Range | 40~70Hz ± 1Hz, or 55~60Hz ± 1Hz | |
| Power Factor | 0.6 | |
| Conversion Efficiency of Built-in Converter | ≥ 0.8 | |
| Waveform | Modified Sine Ware | |
| Transfer Time | Less than 4ms form battery to line,less than 8ms from line to battery | |
| DC Voltage | 2PCS USB 5. 1V1A , 2PCS USB 5. 1V2. 1A , 2PCS 12V2A | |
| Backup Time | ||
| 1PCS Phone Charges | ≥ 15 times | ≥ 20 times |
| 1PCS 12V3W Led Lamp | ≥ 30 hours | ≥ 39 hours |
| 1PCS Office Desktop Computer | ≥ 60 minutes | ≥ 1.3 minutes |
| 1PCS Notebook PC | ≥ 3 hours | ≥ 4 hours |
| 1PCS 30W AC Fan | ≥ 3.5 hours | ≥ 4.5 huors |
| 1PCS 32-inch LCD TV | ≥ 2 hours | ≥ 2.6 huors |
| Battery | ||
| Battery Type | Sealed Lead-Acid Maintenance Free Battery | Lithium Battery |
| The Battery Voltage And Specifications | 12V70000mAH×1PCS | 11. lV10000mAH-18650 -3s3p-3.7V-20000mAH |
| Charge Current | 2A Max | |
| Recharge | After fully discharged,charge 6 hours to 90% capacity | |
| LED/LCD Indicators | Load lever/Battery Lever/Battery/Utility Power/Inverter/Bypass/Overload/Fault | |
| Audible Alarm | Bypass/On Battery Mode/Battery Low/Overload/Fault | |
| Acoustic Noise | At 1 meter distance,＜45 dBA | |
| Protection Functions | Underpressure/Overpressure/Overload/Short Circuit | |
| Specifications | •Input voltage wide range •Boost and buck AVR •Cold start function •Protection for overcharge,deep discharge and automated charge current regulation •Intelligent battery management •Dry contact communication with monitoring software | |
| Plastic Enclosure Color | Customizable Variety of Colors | |
| Environmental Features | ||
| Operating Ambient Temperature | ﹣10 ~ 40°C | |
| Operating Ambient Humidity | 10 ~ 85% | |
| Storage Ambient Temperature | ﹣20〜70° non-condensing | |
| Storage Ambient Humidity | 5 ~ 90% | |
| Structural Characteristics | ABS Fireproof Body | |
| Net Weight (kg) | 5.2 | 3.5 |
| Dimensions W*D*H (mm) | 265*160*185 | |

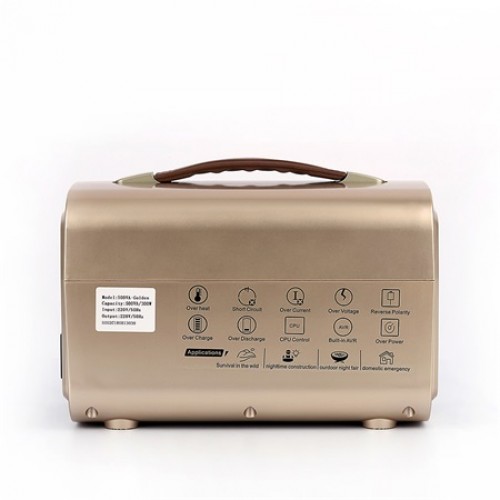

Eg001 pb Gold
- Product Code: Eg001 pb Gold
- Availability: 1000
-
¥350.00
